Maximizing Efficiency in Corrugated Paperboard Production Lines
2025-02-25
OUR PRODUCT
It is a professional enterprise that produces carton machinery and printing machinery of considerable scale.

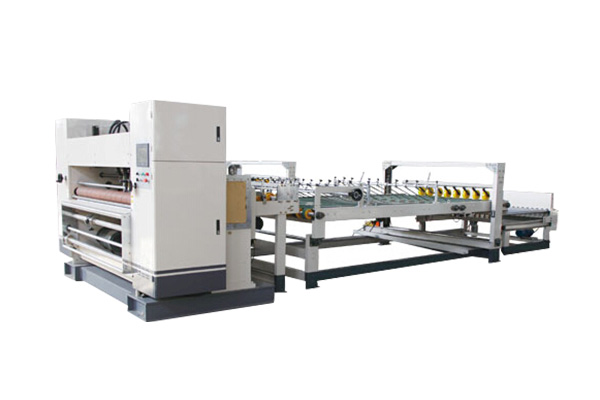

SF-18 single facer, slitter,NC cutter,Stacker
Our company's products have many mechanical models and specifications, which can meet the requirements of different users. In the spirit of "excellence" and "exclusive", our company actively promotes
SYK1224 2 color flexo printing machine, printing machine, Chain feeder printing machine,automatic folder gluer

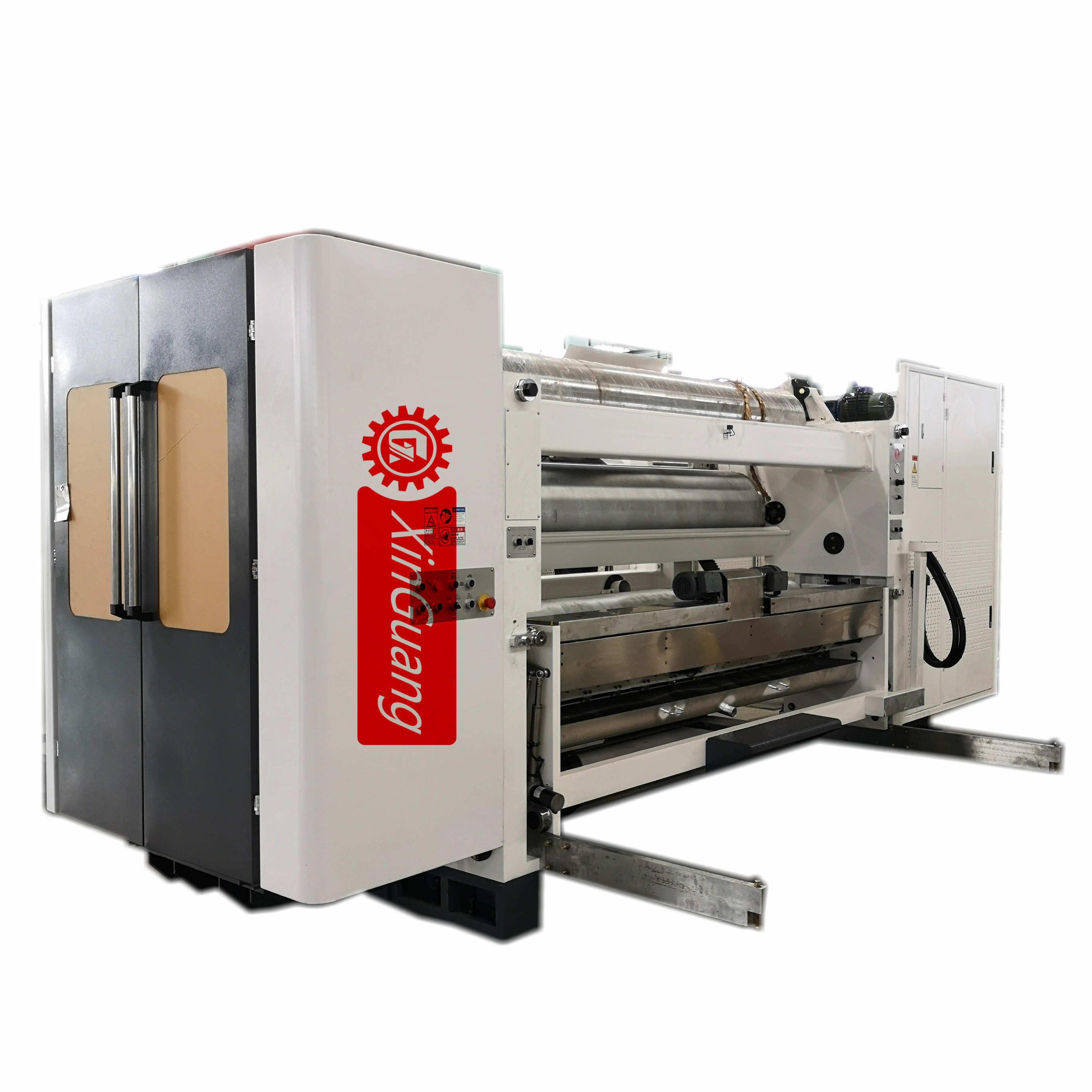

SF-500 Multi-cassette positive pressure single facer, Hebei Xinguang,Xinguang corrugated cardboard production line
SF-500Multi-cassettepositivepressuresinglefacerA、Technicalparameters：Workingwidth1800-2800mm Designspeed350m/minEconomicspeed220-320m/minPaperfeedrange Steamtemperature200℃Steampressure1.2MpaWorkingpower380V 50Hz 80KW B、Structuralfeature：★Maincorrugatingroller：￠500mm（Accordingflutediffer），pressureroller￠600mm，preheatroller￠500mm.★Usingnegativepressuredesign,lowerheatconsumption,helpsthecorepapertopressevenly andclosetothesurfaceofcorrugatedroller, makethecorrugatemoldingbetter,becausethepressureevenly,thetopofcorrugatecanglueuniformandbetter,makethesinglecorrugatedpaperhaveperfectlaminating.★Quicklychangerollersin10minutes,whilechangecorrugatedrollerwiththeelectrictrolleyloading,putintothemachine，andairpressuresystemwilllockit,fixedtothemachinebase，onlyneedafewbuttonscancompletethereplacementquicklyandeasily.★Corrugatedrolleradopt50CRMOhighqualityalloysteel,dealingwithheat,aftergrindingtungstencarbidesurfacetreatment.★Corrugatedroller,pressurerolleradoptairbagcontrolsystemhavinghighstability,havingthebarometricpressurecontrolbufferingeffectatthesametime.★Gluevolumecontrolwithelectricadjustment，rubberseptumelectricdevice，thegluesystemcanoperateindependentlywhenthemotorstops,preventglueexhausted.★Themoveabletypeglueunitisconvenienttocleanandmaintain.★Easyoperationcontrolsystem,touchscreenoperationinterface,Drawingwithcolordisplayoperatingstatus,functionselection,faultindication,andparametersettings,etc.canexcludeexhibitthismachinefullyfunctional,easytooperate,user-friendly.★Built-inpre-conditionerwithproportionalsprayingdevice,adjustmentthecorepapertemperatureandmoisture.★Main,vicecorrugatingandpressurerollerbearingsareusedinhigh-temperaturegreasetoensurebearingliferunningsmoothly.C、Maincomponentparameters： PartnameCraftsmanshipSpecificationMaterialSurfacetreatmentCorrugatedrollerMainroll￠500mm50CrMAo alloysteelTungstencarbidetreatmentPressureroller￠600mm45＃HardenedroundgrindingchromeplatingpolishingGlueroller￠320mm45＃RoundgrindingandpressingpitmeshchromeplatingFixedpasteroller￠175mm45＃RoundgrindingchromePreheatroller￠400mmQ235BRoundgrindingchromePaperguideroller￠110mm45＃RoundgrindingchromeD、Maindynamicparameter：NamePowerVoltageFrequencyMaindrivemotor55KW380V50HZHigh-pressuresuctionmotor22KW380V50HZAdjustablegluepushrod100W380V50HZGlueadjustmentmotor200W*2380V50HZRubberpumpmotor2.2KW380V50HZB、Mainpartsbrandandorigin：SerialnumberMainpartnameBrandorplaceoforiginRemarks01BoxrackSelf-producedHT25002RotaryjointandmetalhoseFuJian 03MaindrivemotorSiemensBed55KWInvertermotor04RVreducerTaiwancity-stateorWanxin 05BearingJapanNSK 06SeatbeltbearingFuJian 07HighpressurefansShanghaiyingfa22KW08PneumaticComponentsAirTac 09TheelectromagneticvalveAirTac 10Low-voltageelectricalappliancesSIEMENSContactor,relay,button11FrequencycontrollerandPLCSIEMENS 12TouchscreenTaiwanWeilunorKunlunTongtai

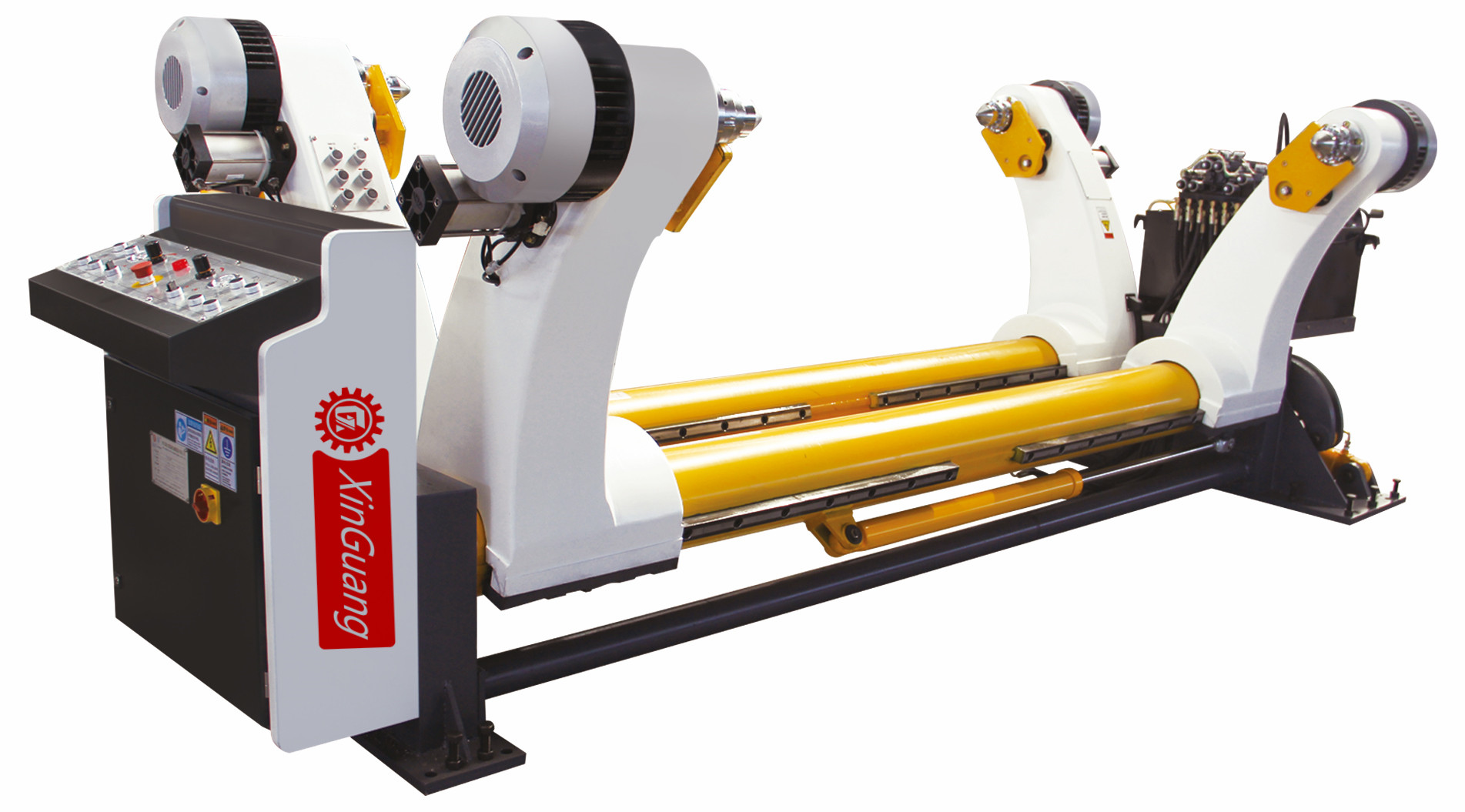

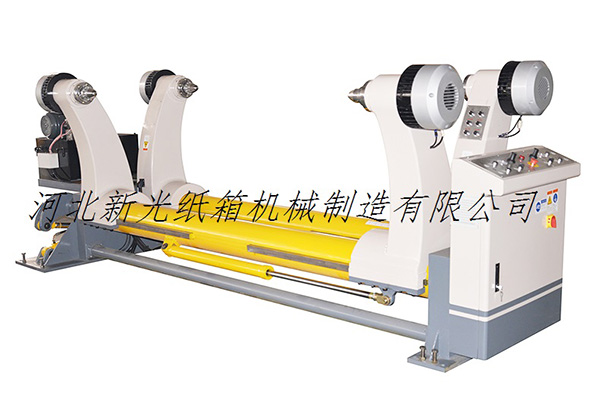

Hydraulic shaftless mill roll stand, Xinguang Machinery,3 ply corrugated cardboard production line
Hydraulicshaftless millrollstandA、Technicalparameters：Workingwide1800-2800mm PaperdiameterMAX:1600mmMIN:300mmPaperwidth Weightcapacity5TPaperheadsizeTeeth3inches4inchesbrakeSpurgeartype4pointspneumaticWorkingairpressure0.4---0.8MpaB、Mainperformancecharacteristics：★Adopthydraulicdrivetocompletethepaperclamping,loosen,removeforthemedium,translationleftandrightandothers，theliftingofthepaperadoptshydraulicdrive.★Thebrakeusesamulti-pointbrakesystem,ageardiscstructure,equippedwithacoolingfan,Yadekepneumaticcomponents,stabletension,andlonglife.★Thelarge-diameterspindledesign,theswingarmslidessmoothly,andthesteelguiderailsaretreatedwithhighfrequencytreatment,whichissuperwear-resistant.★Thehydrauliccylinderisinstalledonatwistedshaft,whichdoesnotbearradialforceandiseasytomaintain.C、Hydraulicsystemparameters：WorkingpressureHydrauliccylinderworkingrangeHydrauliccylinderworkingrangeHydraulicstationmotorpowerSolenoidvalveworkingvoltage16---18Mpa￠125×440mm￠80×1300mm4KW--380V--50Hz220V--50HzD、Mainlypurchasedparts,rawmaterialsandorigin：SerialnumberNameofmainpartsBrandsorplaceoforiginRemarks01MainshaftDaysteelproduction￠270mm 02SwingarmProductionbyownResinsandgrayironHT25003WallboardJigangprductionQ235AWeldingparts04BearingNSK 05MainelectricalapplianceSIEMENSContactor,relay,button06HydraulicstationShandongzaozhuangTaiwanoilpumpsolenoidvalve
ABOUT US
Hebei Xinguang Carton Machinery Manufacturing Co., Ltd.
Hebei Xinguang Carton Machinery Manufacturing Co., Ltd. Is located in the south of the capital Beijing, north of Jinan, with convenient water and land transportation. It is a professional enterprise that produces carton machinery and printing machinery of considerable scale. The company has complete mechanical equipment, such as cassette single face, Xinguang Machinery, Double facer, flexo printing machine, and slotter, etc. and has a high degree of specialization...
